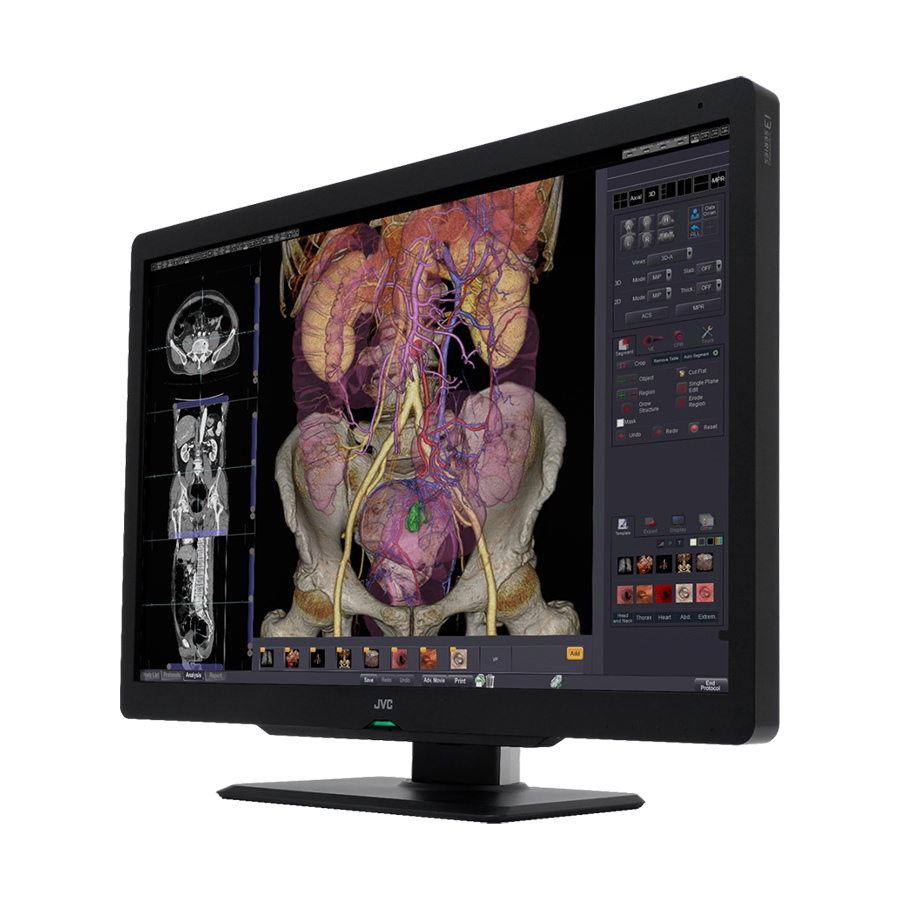

High Luminance & high contrast 6MP color monitor for diagnostic imaging
High Luminance & high contrast 6MP color monitor for diagnostic imaging
| Manufacturer | JVC |
|---|---|
| Condition | New |
| Screen Technology/Type | 30-inch, color, TFT, IPS technology |
| Screen Size (diagonal) | 30-inch |
| Display Resolution | 3280 × 2080 |
| Pixel Pitch | 0.197 mm × 0.197 mm |
| Viewing Angle (H, V) | 178° vertical and horizontal |
| Maximum Luminance | 1300 cd/m² (typ.) |
| Calibrated Luminance | 600 cd/m² (calibrated) |
| Contrast Ratio | 2000:1 (typ.) |
| Video Input Connectors | DisplayPort (DisplayPort 1.4) × 2 |
| Power Input Requirements | 100V – 240 V 50/60 Hz |
| Power Consumption | 80 W (typ.) |
| Dimensions with Stand (W x H x D) | 689.4 mm × 509.9 (604.9) mm × 224.9 mm |
| Dimensions without Stand (W x H x D) | 689.4 mm × 475.6 (484.9) mm × 85.7 mm |
| Net Weight with Stand | approx. 15.1 kg |
| Mounting Options | VESA standard (100 mm x 100 mm) |
| Certifications | ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS, RCM |
| Supplied Accessories | Power cord, DisplayPort cable, USB cable, Operation manual, Installation manual, Software (QA Medivisor Agent LE) |
